Single Coil Barrier

Single Coil Barrier
Drawing of a single coil barrier
Drawing of the razor wire for the single coil barrier
Specification of Single Coil Barrier
Single coil
barrier
type
Number
of turns
N, pcs.
Coil
diameter
D1, mm
Barrier
diameter
D2, mm
Barrier
length
L, m
Core
diameter
d, mm
Blade
thickness
S, mm
"Egoza-S-300-2.2"50300230...2708...122.2±0.050.45±0.05
"Egoza-S-450-2.5"50450360...41012...162.5±0.050.50±0.05
"Egoza-S-600-2.8"50600460...52016...202.8±0.050.50±0.05

Purpose of the Single Coil Barrier

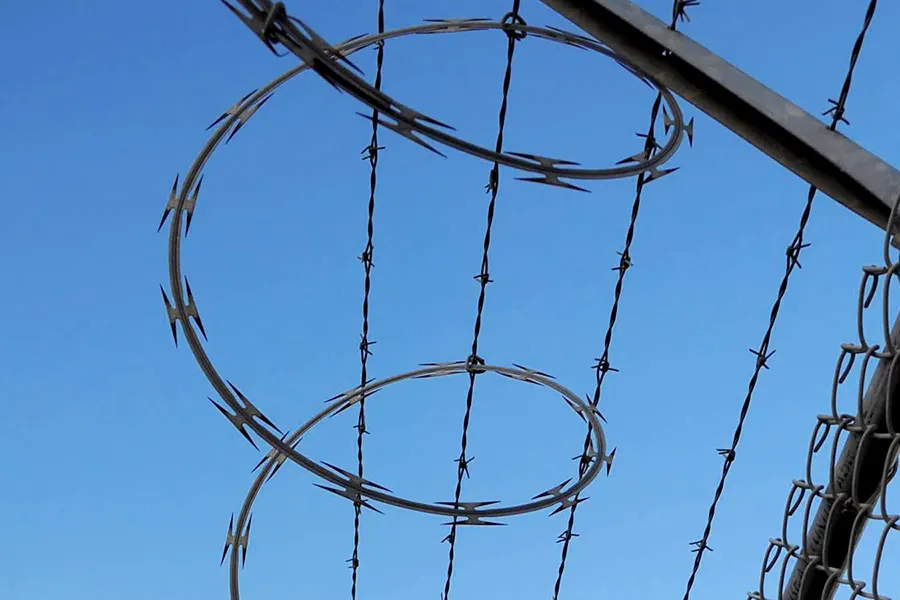

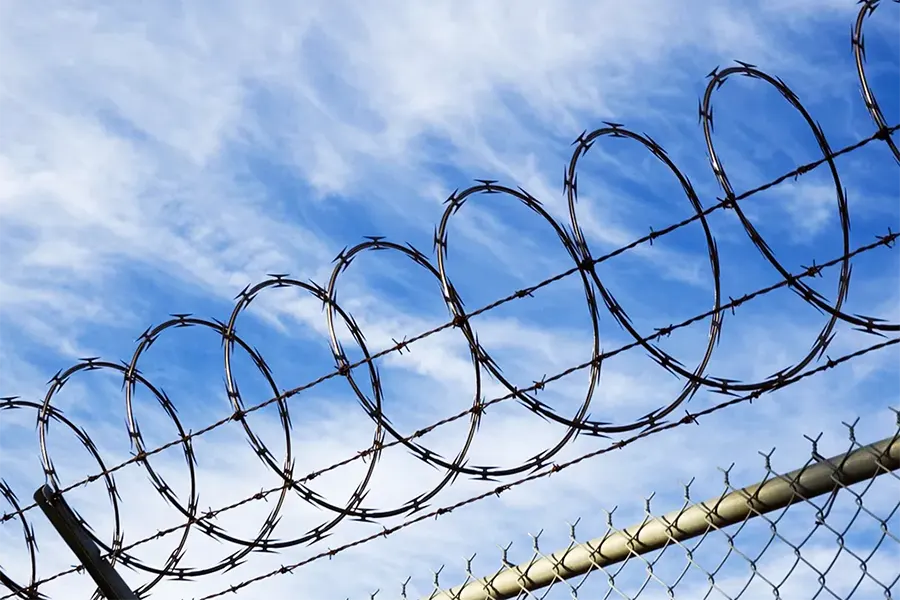

A single coil barrier is used to protect various objects from intruders. Single coil barrier is widely used to protect private property, industrial, commercial and many other objects in need of perimeter protection. A spiral razor wire is installed on all types of fences and other structures in one or more rows.

Single Coil Barrier Design

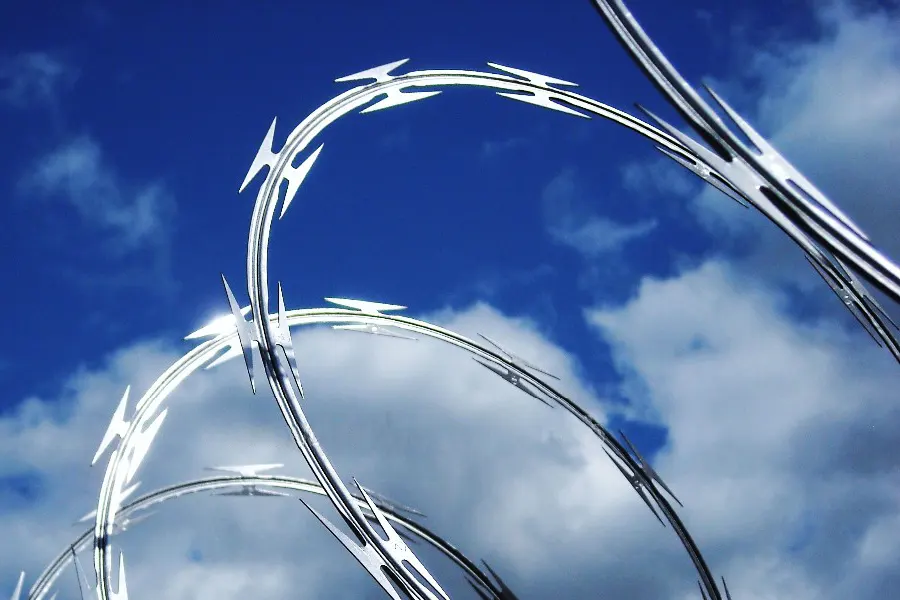

The single coil barrier is a reinforced barbed tape wound into a coil. The coils of the helix are not interconnected in any way. During installation, the barrier is stretched, forming a volumetric spiral with spring properties, the coils of which are located at some distance from each other. This design of the single coil barrier allows the barrier to be stretched at different distances during installation, depending on the need. The single coil barrier is manufactured in various diameters for use in various conditions.

Single Coil Barrier Materials

The single coil barrier is made of razor wire of various diameters. For the production of a single coil barrier, zinc-coated razor wire is used. On request, the single coil barrier can be made of stainless steel.
