Razor Mesh

Razor mesh
Razor msh drowing
Drawing of razor wire for razor mesh
Specification
Razor
mesh
type
Barrier
length
L, m
Barrier
heigth
H, m
Core
diameter
d, mm
Blade
thickness
S, mm
"Egoza-M-2x10-2.8"1022.8±0.050.50±0.05
"Egoza-M-2.4x10-2.8"102.72.8±0.050.50±0.05
"Egoza-M-2.7x10-2.8"102.72.8±0.050.50±0.05

Purpose of the Razor Mesh

Razor mesh is intended for the manufacture of new fences, as well as to enhance the protective properties of existing fences. Thanks to its high protective properties and flat design, barbed mesh can be effectively used both to protect ordinary objects and to protect objects of strategic importance.

Razor Mesh Construction

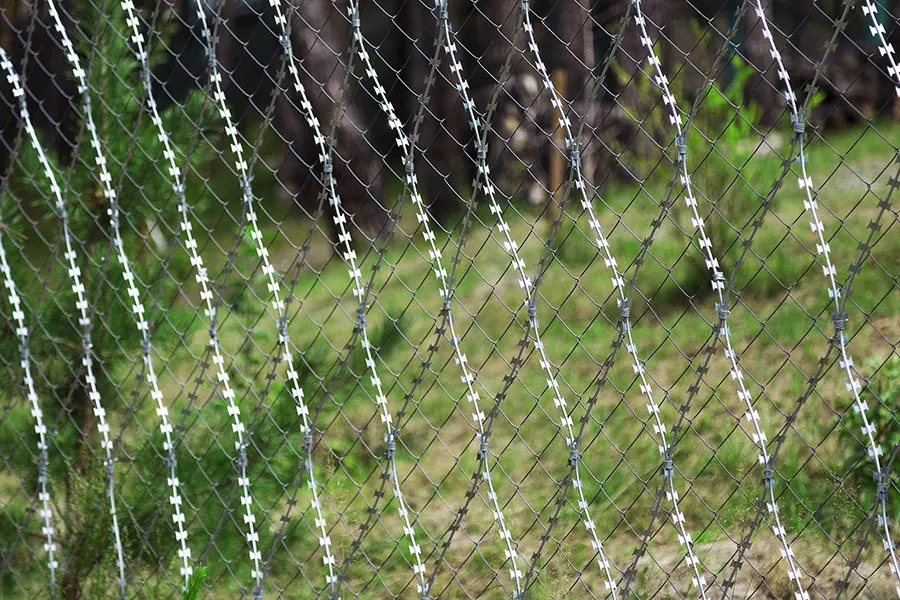

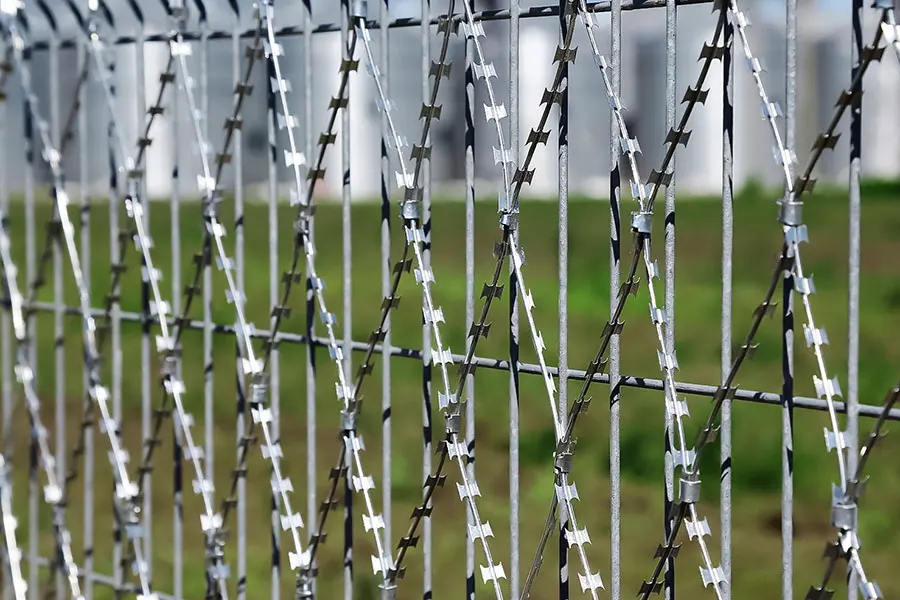

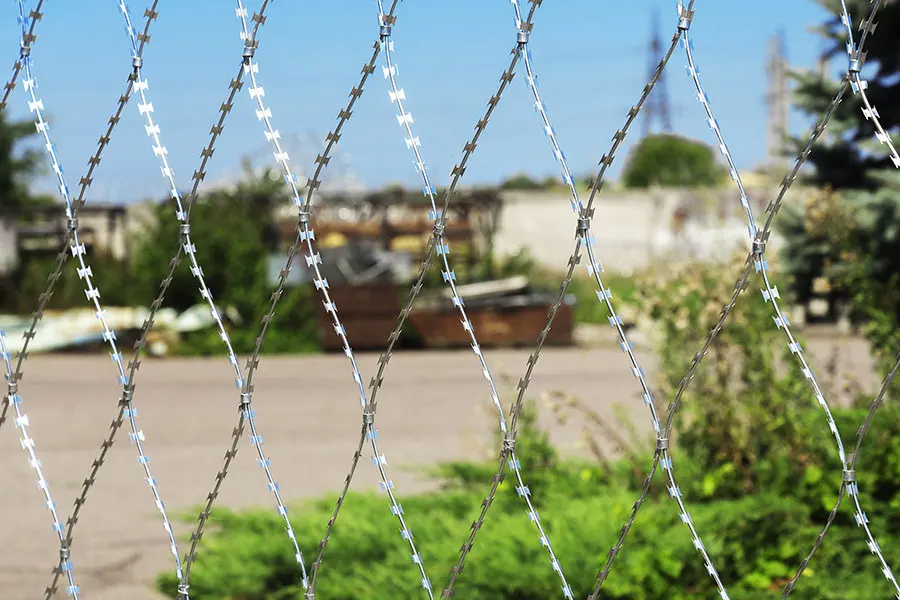

Razor mesh is a web of parallel threads of razor wire, interconnected in a checkerboard pattern at a certain distance. When this barrier is stretched, a flat mesh with diamond-shaped cells is formed. Separate segments of razor mesh can be fastened together with connecting clips to form a continuous web of any length.

Razor Mesh Materials

Razor mesh is made from zinc-coated razor wire and zinc-coated connecting clips. Under the order the razor mesh can be made of stainless steel.
